MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A

  • 1
  • 2

Brand Name : RFan

Model Number : MFC1200A

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 3000

Price : 0.02-0.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1KK/M

Delivery Time : 5-7days

Packaging Details : 1000/Bag

Fuse Element : Silver or Copper

Knife Material : Brass or red copper

Packing : Bulk

Keyword : Charging pile fuse

Condition : Fast Acting

Rating Current : 250A

Contact Now

8x4x5mm MFC1200A 250V 2A Fast-Acting Radial Lead Micro Fuse Quick Acting Fuse
8x4x5mm MFC Series Fast-Acting Radial Lead Micro Fuse
MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A

●Materials

Part NameMaterial
Cap&BaseBlack/Brown Thermoplastic,UL94 V-0
Lead wire

Copper,Tin-plated


●Packaging

Packing typeDescription

Bulk

1,000PCS per bag
Tape1,000PCS per box

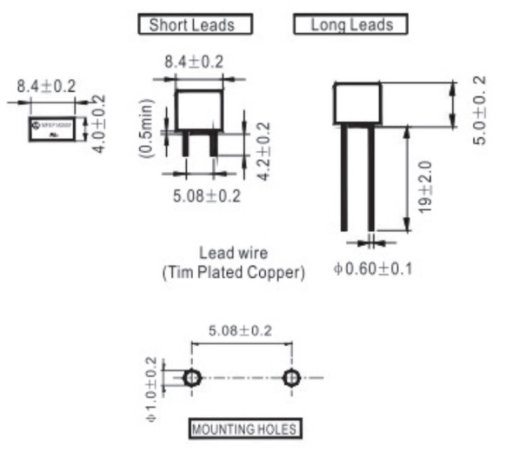

●Dimensions
MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A
●Electrical Characteristics

%of Ampere Rating(In)Blowing Time
150%*In(60 min Minimum)
210%*In(30 min Max)
275%*In(10 ms~3 s)
400%*In(3ms~300ms)
1000%*In(20 ms Max)


●Fuse List

Catalog NumberAmpere RatingVoltage RatingMax Voltage Drop(mv)

IMelting

Integral(A.S)

MFC0050A50mA250/300V42000.0009
MFC0100A100mA250/300V35000.002
MFC0125A125mA250/300V20000.008
MFC0160A160mA250/300V20000.012
MFC0200A200mA250/300V17000.04
MFC0250A250mA250/300V14000.06
MFC0315A315mA250/300V13000.10
MFC0400A400mA250/300V12000.20
MFC0500A500mA250/300V11000.35
MFC0630A630mA250/300V6500.50
MFC0800A800mA250/300V2401.3
MFC1100A1A250/300V2001.6
MFC1125A1.25A250/300V2002.4
MFC1160A1.6A250/300V1904.6
MFC1200A2A250/300V1707.9
MFC1250A2.5A250/300V17012
MFC1315A3.15A250/300V15022
MFC1400A4A250/300V13029
MFC1500A5A250/300V13078
MFC1630A6.3A250/300V13097
MFC1800A8A250/300V100290
MFC2100A10A250/300V100430










Product Tags:

Micro Quick Acting Fuse



Quick Acting Fuse 8x4x5mm



Quick Acting Fuse 250V


Quality MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A wholesale

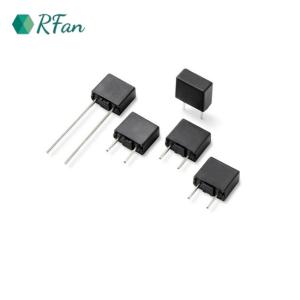

MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A Images
