ADL-A175 Automotive Auto Bolt Down ADL ANL Stud Mount Fuse 32V 48V 80V 125V 175A

  • 1
  • 2
  • 3

Brand Name : RFan

Model Number : ADL-A125

Certification : UL

Place of Origin : China

MOQ : 1000

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100K/Month

Delivery Time : 5-8days

Lead Shape : Axial

Ambient Temperature : -40°C ~ +130°C

Lead Wire : Tin Plated Copper

Base Temperature : 125℃

Certificates : CUL,UL

Standards : UL 248 -1 / -14

Contact Now

ADL-A175 Automobile Vehicle 32V 48V 80V 125V 175A Car Automotive Auto Bolt-Down ADL ANL Stud Mount FuseADL-A175 Automotive Auto Bolt Down ADL ANL Stud Mount Fuse 32V 48V 80V 125V 175A

ADL Fuse

Specification

Model large stud fuse
Rated current 40A-500A
Rated voltage 32V/48V/80V/125V
Material Bakelite+Copper
Color black

Time-Current Characteristics

%of Rating Openning Time Min/Max(S)
40-200A 225A-500A
Min. Max. Min. Max.
150% 1hr ---- ---- ----
160% ---- ---- 60 s ----
220% ---- 60 s ---- 60 s
250% 0.8 s 10 s 0.8 s 10 s
400% 0.2 s 0.2 s 2 s

ADL Non Time-delayed Current Limiters

Catalog No Voltage Rating AmpereRating
ADL-A40 32V/48V/125V 40 A
ADL-A60 32V/48V/125V 60 A
ADL-A80 32V/48V/125V 80 A
ADL-A100 32V/48V/125V 100 A
ADL-A125 32V/48V/125V 125 A
ADL-A150 32V/48V/125V 150 A
ADL-A175 32V/48V/125V 175 A
ADL-A200 32V/48V/125V 200 A
ADL-A250 32V/48V/125V 250 A
ADL-A300 32V/48V/125V 300 A
ADL-A350 32V/48V/125V 375 A
ADL-A400 32V/48V/125V 400 A
ADL-A450 32V/48V/125V 450 A
ADL-A500 32V/48V/125V 500 A

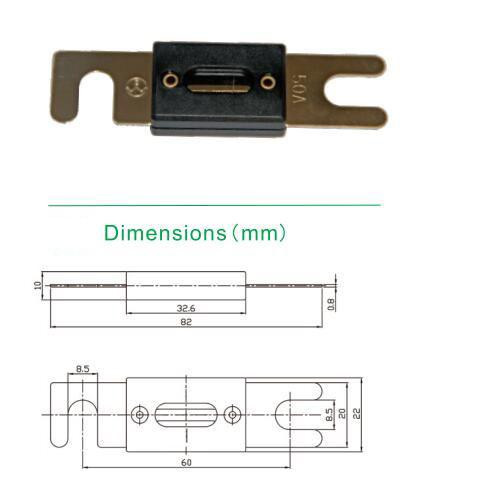

ADL-A175 Automotive Auto Bolt Down ADL ANL Stud Mount Fuse 32V 48V 80V 125V 175A

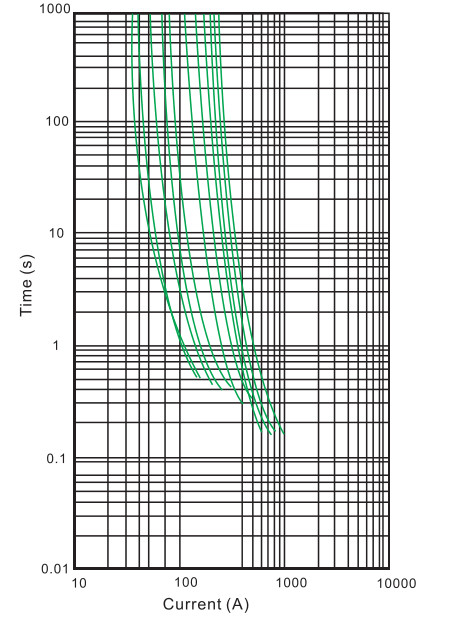

Time- Current Characteristic Curves

ADL-A175 Automotive Auto Bolt Down ADL ANL Stud Mount Fuse 32V 48V 80V 125V 175A
